Quick Overview:

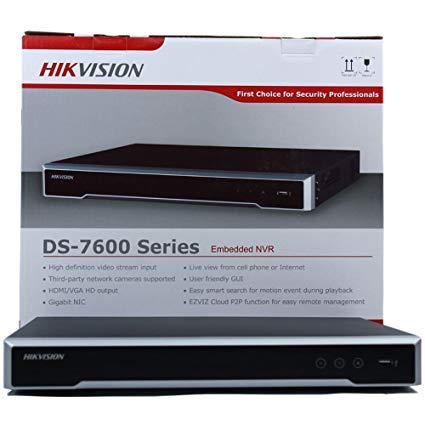

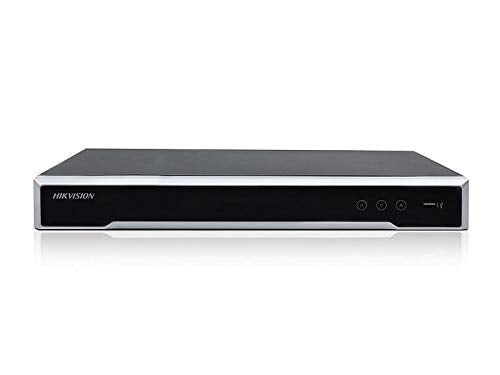

The Hikvision DS-7616NI-K2-16P is a 16 channel network video recorder with a wide array of features, including 16 PoE network interfaces, support for up to 4k (8MP) resolution recording and playback, H.264/H.264+/H.265 codecs, and a dual OS design for reliability and failover redundancy.
This brand new NVR is designed to be cost-efficient, whilst still containing all of the benefits and features that are expected from Hikvision's latest generation of fantastic IP camera systems. It's perfect for those small security systems found in homes and shops.
This NVR will accept any capacity hard drive (HDD) currently available. Any maximum capacity stated on the manufacturer’s documents is simply based upon the maximum HDD size that was available at the time of release/publication.
The K Series NVRs also support Hikvision's Automatic Number Plate Recognition solutions and other features such as two-way audio.

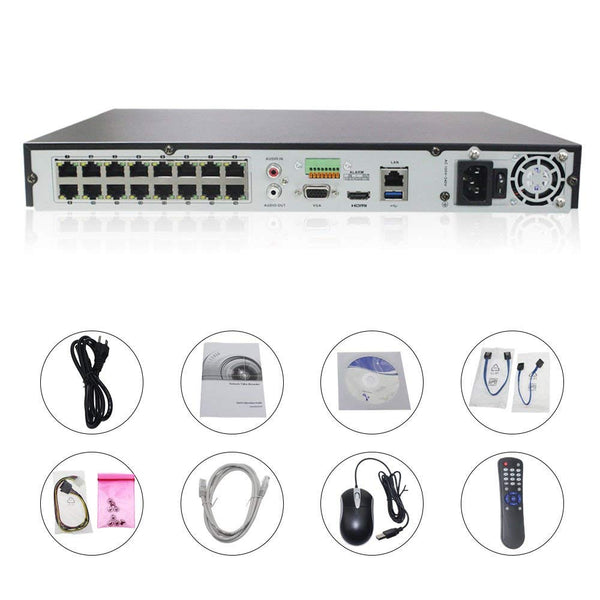

This NVR has a HDMI and VGA input to allow a monitor to be directly connected. Alternatively, the NVR can be accessed remotely via web browser or Hik-Connect. A suitable power supply and mouse comes with this NVR.
Max. HDD Support - 20TB (2x SATA Drive).
Max. Supported IP Cameras - 16
Max. Megabits Per Second - 160Mbps
Key Features:
- 16 Channel PoE IP Camera Ports
- Support for up to 8MP recording and playback
- Support for 4k video output
- H.264/H.264+/H.265 video codecs
- 2 SATA interface to connect 2 6TB hard drive
- Support for VCA detection alarm
- Compatible with third-party IP cameras
- Supports Hikvision's ANPR solutions
Additional Information:
Number of Channels |
16 |
Synchronous Playback |
16-ch |
Number of PoE Ports |
16 |
Incoming Bandwidth |
160 Mbps |
Outgoing Bandwidth |
160 Mbps |
Number of Bays |
2 |
Audio Input |
1-ch |
Audio Ouput |
1-ch |
Alarm I/O |
4/1 |
Front USB |
1 x USB 2.0 |
Rear USB |
1 x USB 3.0 |
Fan |
Yes |
RS232 |
Yes |
RS485 |
Yes |
ANR (Automatic Network Recover) |
Yes |
HDD Capacity Supplied |
0GB (Hard Disk Drives sold seperately to demand) |
Maximum Memory Capacity |
24TB |
Chassis |
385mm |
Dimensions |
385 x 315 x 52mm |
Warranty |
3 Years |
