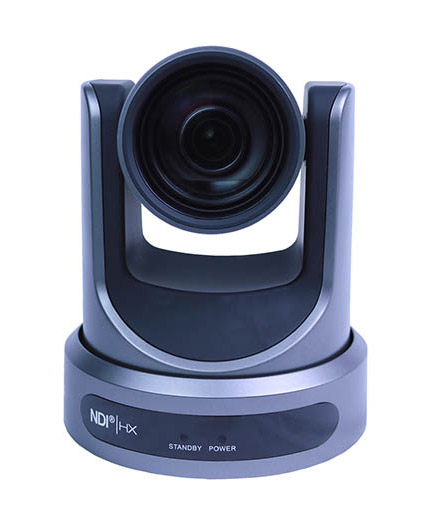

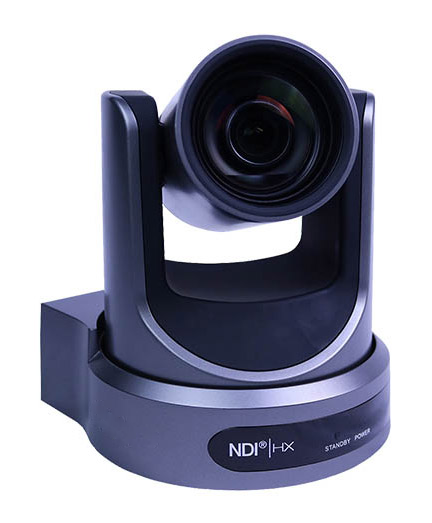

20X Optical Zoom SDI NDI Live Streaming Broadcast and Conference Video Camera (Gray) Resolution HD 1080P with Wall Mount and Joystick

Bulwark Technology

Only 100 left!

Tech Specs

Video Outputs Video Outputs (1) 3G-SDI (up to 1080P@60fps capable)
(1) HDMI Version 1.3 (up to 1080p@60fps capable)
(1) NDI|HX® (1080p@60fps capable)1
Other Video over Ethernet output options2
(1) CVBS*, Not simultaneous with SDI or HDMI outputs3

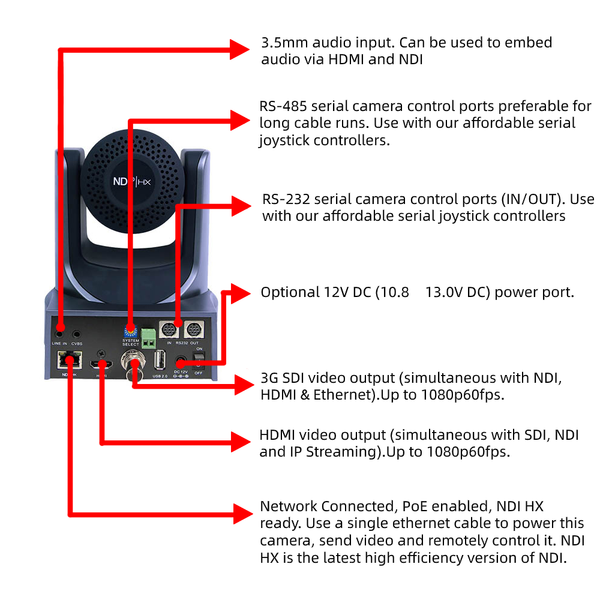

Connectors (1) 3G-SDI (BNC – 75 Ohm, Female)
(1) HDMI v1.3 Type A (Female)
(1) 10/100/1000 RJ-45
(1) Non-powered 3.5mm Female Input
Aspect Ratios 4:3, 16:9
Standard Resolutions PAL, PAL wide, NTSC, NTSC Wide
Output Resolution Range 480i-30 to 1080p60
Frame Rate Up to 60 fps
IP Streaming Video Bitrate Range: 32 – 20480 kbps
Maximum 1080p Frame Rate 60fps
Maximum 720p Frame Rate 120fps
Audio Bitrate Options: 96K, 129K, 256K
AAC Audio Encoding
Audio Sample Rate Options: 44.1K, 48K
Recommended maximum Cable Length for SDI (based on standards) 300 ft
Recommended maximum Cable Length for HDMI (based on standards) 45 ft
Recommended maximum Cable Length for Ethernet (based on standards) 328 ft
Camera and Lens Video Sensor Panasonic 1/2.7” CMOS, 2.07 Megapixels
Scanning Mode Progressive
Frame Rates Full Frame Rates: 1080p-60/50/30/25, 1080-60/50, 720p-60/50/30/25
Experimental Broadcast Frame Rates: 1080p59.94, 1080i59.94, 1080p29.97, 720p59.94
CVBS Only (576i-30, 480i-30)
Focal Length 12x Optical, F3.5mm-42.3mm, F1.8-F2.8
20x Optical, F4.42mm-88.5mm, F1.8-F2.8
30x Optical, F4.42mm-132.6mm, F1.8-F2.8
Zoom Length 12X Optical (PT12x)
20X Optical (PT20x)
30X Optical (PT30x)
Horizontal Field of View (Full Wide) 12X Lens – 72.5°
20X Lens – 60.7°
30X Lens – 60.7°
Horizontal Field of View (Full Tele) 12X Lens – 7.0°
20X Lens – 4.0°
30X Lens – 2.3°
Min Lux 0.5 Lux at F1.8, AGC ON
Shutter Speed 1/30s – 1/10000s
SNR ≥55dB
Vertical Flip & Mirror Supported
Horizontal Angle of View 12X Lens – 6.9° (tele) to 72.5° (wide)
20X Lens – 2.28° (tele) to 60.7° (wide)
30X Lens – 2.28° (tele) to 60.7° (wide)
Vertical Angle of View 12X Lens – 3.9° (tele) to 44.8° (wide)
20X Lens – 1.28° (tele) to 34.1° (wide)
30X Lens – 1.28° (tele) to 34.1° (wide)
Wide Dynamic Range Supported
White Balance Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K-1, 6500K-2, 6500K-3, One Push (ok), Manual
Digital Noise Reduction 2D & 3D Digital Noise Reduction
Audio Analog audio inputs Line In, 3.5mm (NDI|HX™, HDMI & IP Stream Only)
Networking DHCP Supported
Static IP Supported
Multicast Supported
Dual Streaming Supported
720p120fps Supported
HTTP Port Number Default 80
RTSP Port Default 554
TCP Port (Control) Default 5678
UDP Port Default 1259
Web Management Supported
Guest & Admin Logins

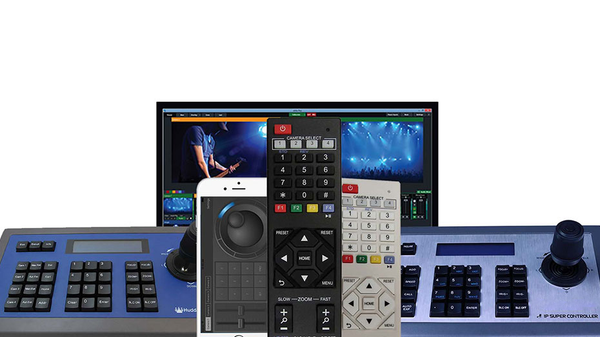

Camera Control (1) RS-232 (8-pin mini din IN) RS-232, RS-485, VISCA, PELCO-D/P
(1) RS-232 (8-pin mini din Out) (passthrough) Used to cascade RS-232, RS-485, VISCA, PELCO-D/P controls to next camera in line
(1) RS-485 2-pin phoenix port
Max distance: 1500m
Protocols: VISCA/Pelco-D/Pelco-P
Baud Rate 2400/4800/9600 bits
IP BOLLNG VISCA over IP4
Recommended maximum cable length for RS-232 90 feet (30 meters)
Recommended maximum cable length for RS-485 3,600 feet (1,200 meters)
Pan & Tilt Movement Pan Movement ±170°
Tilt Rotation Up: 90°, Down: 30°
PTZ Presets 10 via IR (255 via Serial or IP)
255 presets via Serial or IP
Horizontal Pan Range ±170°
Vertical Pan Range -30° to +90°
Pan Speed Range 1.7° ~ 100°/s
Tilt Speed Range 1.7° ~ 69.9°/s
Preset Accuracy 0.1°
Electrical Index Power Supply 12W (Max)
Input Voltage 12V DC (10.8 – 13.0V DC) or PoE 802.3af
Power over Ethernet Standard PoE supported 802.3af
Physical Specifications Dimension (in.) 5.6W x 6.5H x 6.7D (7.88H max w/ Tilt)
Dimensions (mm) 142W x 164H x 169D (189H max w/ Tilt)
Box Dimensions 9” x 9” x 10” | 229mm x 254mm x 229mm
Camera Weight 3.05 lbs. (1.38 kg)
Boxed Weight 5.4 lbs. (2.45 kg)
Regulatory Compliance FCC compliance: FCC 47 CFR Part 15 Subpart B – Class A:2011, ANSI C63.4-2014
CE compliance: EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55035:2017

High (1920 x 1080 @ 60 fps); Medium (1920 x 1080 @ 30 fps); Low (1280 x 720 @ 60 fps); Low Bandwidth (640 x 360 @ 30 fps)
H.264, H.265, MJPEG Encoding; RTSP; RTMP
SD only (576i-30, 480i-30)
TCP (5678); UDP (1259)

*PLEASE NOTE: The 30x is unable to perform simultaneous 1080p 60fps over SDI / HDMI & the NDI|HX™ / IP Stream. When utilizing 1080p 60fps on either of the outputs, the other output must be set to a maximum of 1080p 30fps.
