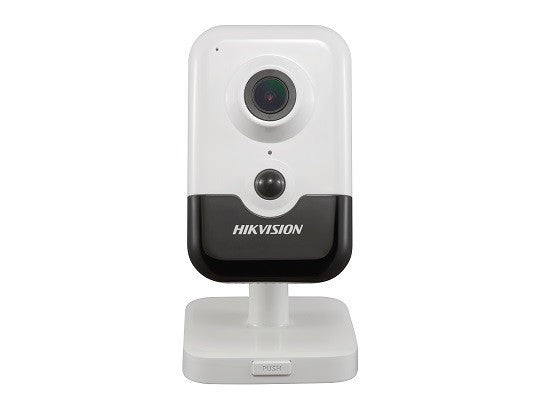

DS-2CD2455FWD-I(W) 5 MP IR Fixed Cube Network Camera

Hikvision

5 MP



• 2944 × 1656@20fps

 • IR: 10 m

 • PIR: 10m

 • H.265, H.265+

 •120dB WDR

 • Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

 • PoE

 • EXIR

 • Wi-Fi (Optional)



Camera
Image Sensor: 1/2.9" Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Shutter time: 1/3 s to 1/100,000 s
Slow shutter: Support
Lens: 2.8 mm: Horizontal field of view: 97°, Vertical field of view: 54°, Diagonal field of view: 113°
Lens Mount: M12
Adjustment Range: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Focus: Fixed
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate: 32Kbps~16Mbps
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Triple Streams: Yes
Max. Image Resolution: 2944 × 1656
Frame Rate: 50Hz: 20 fps (2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream: 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement: BLC/3D DNR/ROI/HLC
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
ROI: Support 1 fixed region for main stream and sub-stream separately
Day/Night Switch: Day/Night/Auto/Schedule
Network
Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G), ISAPI
Interface
Audio: 1 built-in mic, 1 built-in speaker, mono sound
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes
Audio
Environment Noise Filtering: Support
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Behavior Analysis: Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections: Scene change detection
Recognition: Face Detection
Wi-Fi Specification (-W)
Wireless Standards: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.412 GHz to 2.4835 GHz
Channel Bandwidth: 20/40MHz Support
Transmission Rate: 11b: 11Mbps
11g: 54Mbps
11n: up to 150Mbps
Wireless Range: 50m(depend on environment)
Protocols: 802.11b: DQPSK, DBPSK, CCK
802.11g/n: OFDM /64-QAM,16-QAM, QPSK, BPSK
General
Operating Conditions: -10 °C – 40°C (14 °F – 104 °F), Humidity 95% or less (non-condensing)
Power Supply: 12 V DC ± 20%, PoE (802.3af, class 3)
Power Consumption: 12 VDC, 0.47A, max. 7W
PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7W
IR Range: Up to 10m
PIR: 10m
Dimensions: 102.8 mm × 65.2 mm × 32.6 mm (4.05" × 2.57" × 1.28")
Weight: Camera: Approx. 128 g (0.28 lb)
