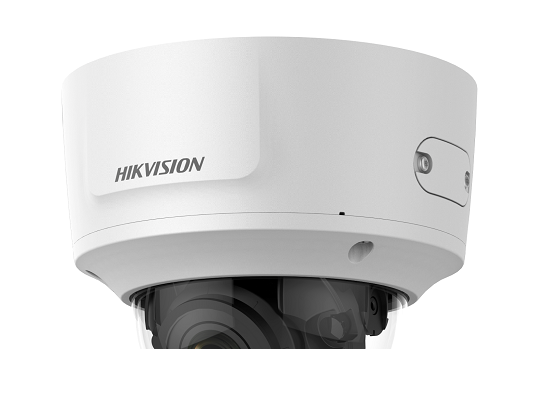

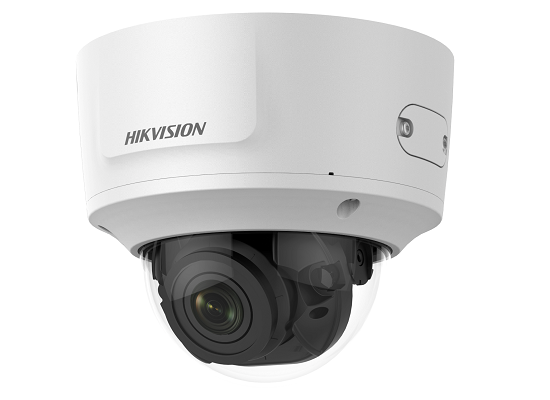

HikVision DS-2CD2785G0-IZS 8 MP IR Varifocal Dome Network Camera(8MP Vari-Focal EXIR Dome Onvif weatherproof 2.8-12mm motorized lens and night vision)

Hikvision

8 MP
  • 1/2 Progressive Scan CMOS
  •  3840 × 2160 resolution
  •  2. 8 to 12 mm motorized zoom lens
  •  H.265, H.265+,H.264,H.264+
  •  120dB WDR
  •  BLC/3D DNR/ROI/HLC
  •  IP66, IK10
  •  112 to 46° field of view
  •  2-channel audio input and output
  •  Powered by Darkfighter
  •  Up to 100' infrared LED for night vision
  •  4 behavior analyses and face detection
  •  Color: 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON)

Provide users with the option to choose different video compression standards (such as H.265+, MJPEG, etc.)
[
Ultra HD 4K resolution video] 8MP 4K resolution 3840×2160, 15 frames per second (FPS). 8MP Ultra HD video recording provides excellent quality, allowing you to view fine details at a higher resolution. Up to 90 feet of enhanced infrared night vision can produce brighter and clearer images between day and night (intelligent infrared cut filter with automatic switch).
[Smart H.265+ and 120dB WDR] Smart H.265+ is an optimized implementation of the H.265 codec. It uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and smart 3D Noise reduction delivers high-quality video without stressing the network. 120dB wide dynamic range, 4mm fixed lens, ultra-wide viewing angle up to 93°, allowing you to see more details and cover more ground to maintain 24/7 security.
[Intelligent video analysis with real-time monitoring function] 4 Behavior analysis and face detection. Motion detection is a built-in video analysis algorithm that can provide smart functions to monitor the scene to check whether a trip line violation or intrusion detection occurs. Real-time streaming to your phone and PC, and an activity alert when motion is detected. Mobile viewing, remote monitoring, privacy mask, etc. It will best meet your needs.
[Plug and Play] 2.8-12mm motorized zoom lens dome IP surveillance CCTV surveillance camera produced by HIKVISION. Power over Ethernet (POE), compatible with Hikvision, Blue Iris, Synology, etc. Remote viewing through Hik-Connect and IVMS-4200. Available for iOS and Android.

Camera
Image Sensor: 1/2" Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON)
Shutter time: 1/3 s to 1/100,000 s
Slow shutter: Support
Lens: 2.8 to 12 mm
Lens Mount: φ14
Adjustment Range: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Focus: Auto
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate: 32Kbps~16Mbps
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Triple Streams: Yes
Max. Image Resolution: 3840 × 2160
Frame Rate: 50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream: 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
Image Enhancement: BLC/3D DNR/ROI/HLC
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
ROI: Support 1 fixed region for main stream and sub stream separately
Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In
Network
Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function: One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video
mask, Watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G), ISAPI
Interface
Audio: 1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
Alarm: 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
Video Output: 1Vp-p Composite Output(75Ω/CVBS) (For adjustment only)
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes
Audio
Environment Noise Filtering: Support
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Behavior Analysis: Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections: Scene change detection
Recognition: Face Detection
General
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: 12 VDC, 0.9A, max. 10.5W
PoE: (802.3af, 36V to 57V), 0.4A to 0.2A, max. 12.5W
Impact Protection: IK10
Weather Proof: IP66
IR Range: Up to 30m
Dimensions: Camera: Φ 153.4 × 133.1 mm (Φ 6" × 5.2")
Weight: Camera: 1300 g (2.9 lb.)
With package: 1500 g (3.3 lb.)
