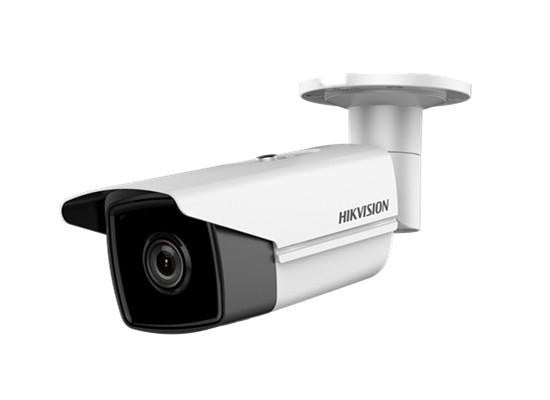

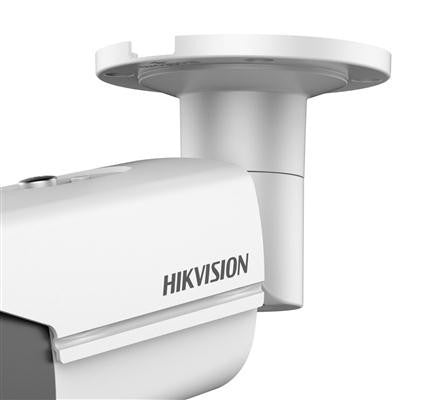

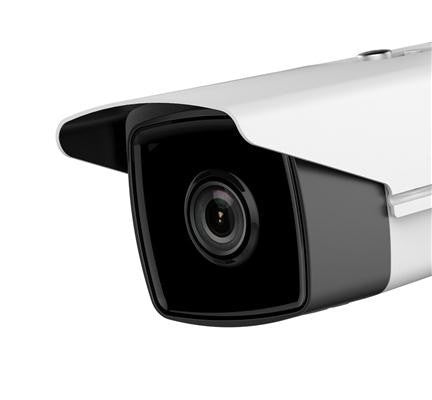

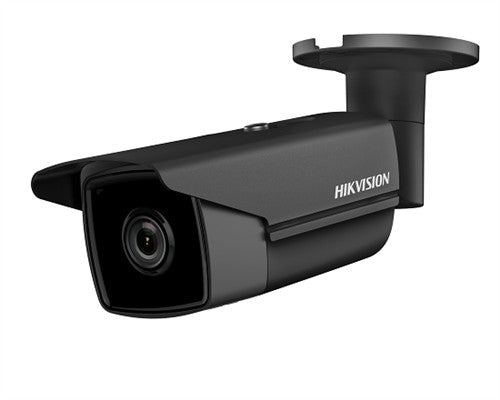

DS-2CD2T25FWD-I5/I8 2 MP IR Fixed Bullet Network Camera

Hikvision

2 MP



• Up to 2 megapixel high resolution

 • Max. 1920 × 1080 @30fps

 • 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed lens, optional

 • Powered by Darkfighter

 • H.265, H.265+, H.264+, H.264

 • 120dB Wide Dynamic Range

 • 3D Digital Noise Reduction

  • DC12V & PoE (802.3af)

 • IR range: 50m, 80m, optional

 • Support on-board storage, up to 128 GB

 • IP67



Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter time: 1/3 s to 1/100,000 s
Slow shutter: Support
Lens: 2.8 mm, horizontal field of view: 108°
4 mm, horizontal field of view: 86.4°
6 mm, horizontal field of view: 52°
8 mm, horizontal field of view: 41°
12 mm, horizontal field of view: 25°
Lens Mount: M12
Adjustment Range: Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Focus: Fixed
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate: 32Kbps~16Mbps
Triple Streams: Yes
Max. Image Resolution: 1920 x 1080
Frame Rate: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720)
Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream: 50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240)
Image Enhancement: BLC/3D DNR/BLC
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
ROI: Support 1 fixed region for main stream and sub stream separately
Day/Night Switch: Day/Night/Auto/Schedule
Network
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G), ISAPI
Interface
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes
Smart Feature-set
Behavior Analysis: Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections: Scene change detection
Recognition: Face Detection
General
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: -I5: 12 VDC ± 25%, 7 W; PoE, 9 W
-I8: 12 VDC ± 25%, 10 W; PoE, 12.5 W
Weather Proof: IP67
IR Range: -I5: up to 50 m; -I8: up to 80 m
Dimensions: Camera: Φ105 × 299.7 mm (Φ4.13″ × 11.80″)
Package: 386 × 156 × 155 mm (15.2″ × 6.14″ × 6.1″)
Weight: Camera: 1200 g (2.65 lb.)
