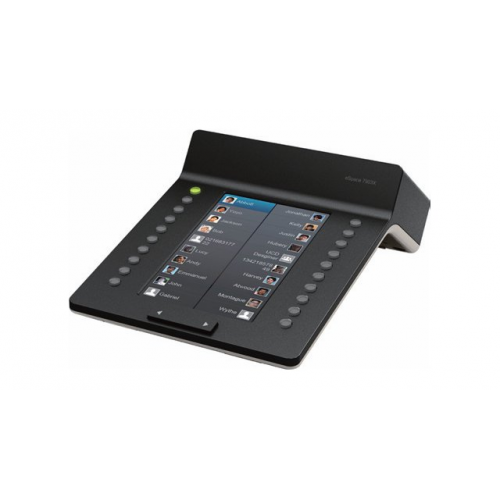

eSpace 7903X Expansion Module

Bulwark Technology

Model:  EP1Z01ETIM

The Huawei eSpace 7903X is a multi-functional VoIP phone expansion module, which is ideal for managers, secretaries, and receptionists at the front desk who need additional functionality from their Huawei VoIP phone. The Huawei 7903X is used with the Huawei eSpace 7950 to provide various functions including speed dial, phone lock, and phone sleep. With a single eSpace 7903X, eSpace 7950 increases the number of programmable buttons to 40 and provides optimized viewing through the 5-inch color LCD screen.  Up to three 7903X can be paired with one Huawei eSpace 79050. The Huawei eSpace 7903X helps users use eSpace 7950 more efficiently with better user experience.


eSpace 7903X Technical Specifications

Parameter Specification
IP phone support eSpace 7950
Screen 5 inches, 480 x 800 pixels, 16 million colors, color screen
Language display Arabic, Chinese (simplified and traditional), English, French, Portuguese, and Spanish
Buttons 20 programmable buttons and 2 page buttons
Maximum number of pages 2
Maximum number of programmable buttons 40
Maximum number of expansion modules for each eSpace 7950 3
Functions BLF, contact group, speed dial, XML application, phone lock, and phone sleep
Power adapter Input: 100–240 V AC
Output: 5 V DC, 2 A
Power consumption About 3 W
Dimensions 209 mm x 130 mm x 67.5 mm
Weight About 0.41 kg
