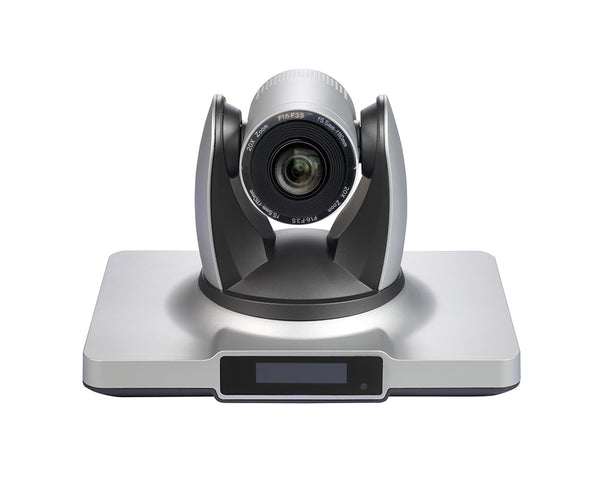

H.323 Enterprise-grade 20x Optical Zoom IP DVI Camera Conference Endpoint with 360 degree

Bulwark Technology

Model: BW-P6000

Main Features:

Strong Compatibility

a. Support H.323 / SIP dual-protocol stack, which make it achieve good interoperability with the industry standard terminals, MCU, GK, etc. It is convenient for customers’ expansion and upgrading.

b. The rich interface configuration make it fit for different application environment and compatible with mainstream audio/video input/output devices.

Superior performance to present ultra HD video

a. Built-in high-performance digital signal processing chip,support dual 1080p60

b. Audio supports AAC-LD broadband codec, and use optimal algorithm to achieve echo cancellation, noise suppression and automatic gain control, thus to ensure high-fidelity, low-latency audio transmission.

c. Qos settings and unique media error correction(MEC) technology can guarantee smooth audio and video effects under high bit error rate condition (priority to ensure audio quality under network degradation condition)

User-friendly design for operation and maintenance

a. It adopts high integrated structural design(integrated camera)

b. Built-in gravity sensor, making the image flip automatically under upside down mount mode.

c. Flat UI style design, to make it easier for user to operate.

d. Remote controller integrated part of function buttons

e. U disk, web pages and other upgrades ways will help post-maintenance and system upgrades.

Multiple security mechanism ensures the security of content transmission.

a. The system applies AES media encryption technology.

b. User certificates, password protection, HTTPS security links and other encryption measures ensures safe operation of the system.

c. Supports H.460, NAT, and configurable port ranges for firewall traversal


Technical Parameter:

Model BW-P6000
Communication Protocol

H.323(Including H.221,H.225, H.235,

H.245, H.281,T.140,DTMF etc.)

Camera Features Optical Zoom:20X
View Angle:3.3°(tele)~54.7°(wide)

Video Signal Format:1080p50/60,


Auto Focus/Auto White Balance/Auto BLC
2D & 3D digital noise reduction

Video Adjustment:Brightness,Color,


B/W mode,Gamma curve.

Camera Control Support FECC remote control protocol
Video Encoding H.261, H.263, H.264, H.264HP

2 channels video inputs:one channel

integratedcamera video input,the other

channel auxiliary video stream input

Video Input

Video formats supported by DVI-I:1920x1080(1080P),





Main camera video output interface:HDMI
Video Output Auxiliary video output interface:HDMI

Video formats supported:1920x1080(1080P)


Audio Encoding

G.711A, G.711U, G.722, G.722.1C, G.728,

G.729A, AAC-LD

Audio processing technology echo canceller,noise suppression,AGC
Audio Input 1xXLR
1 * Microphone Array
1x HDMIaudio(audio from auxiliary stream)
Microphone array

Support 48KHz sampling,6m audio pick up

distance, 360°omnidirectional microphone

USB Interface USB2.0(for FM upgrading and maintenance)
LAN Interface 10/100/1000M LAN
LAN Protocol


RTP/RTCP,H.460 ,H.239(H.323),BFCP(SIP)

Bandwidth requirement 64kbit/s-6Mbit/s
 Security AES
Management interface password protection
TV configuration interface password protection
Control ways Remote control+ TV interface
Webpage management
Supply Adapter

AC 110-240V,50Hz-60Hz to DC 12V

Supply Adapter

Consumption <60W
Working Temperature 0-40℃
Working Humidity  10%-80%
Store Temperature -40-70℃
Store Humidity 0%-95%
Dimension 270mm(L)*184mm(W)*187mm(H)
Weight 1.94kg
Packed Dimension 36x30x27CM
Gross weight 6.5KG
