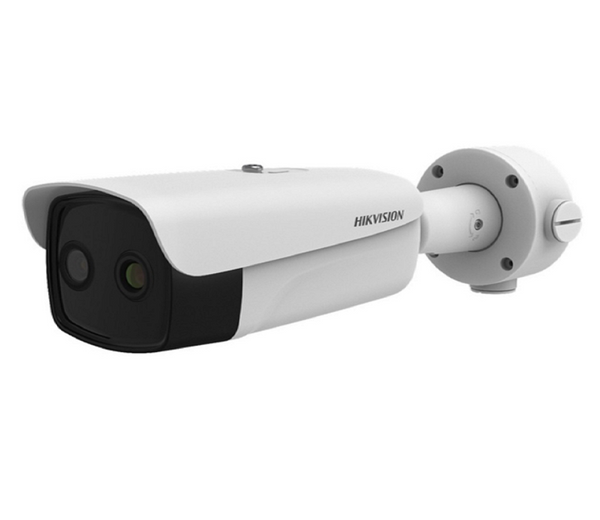

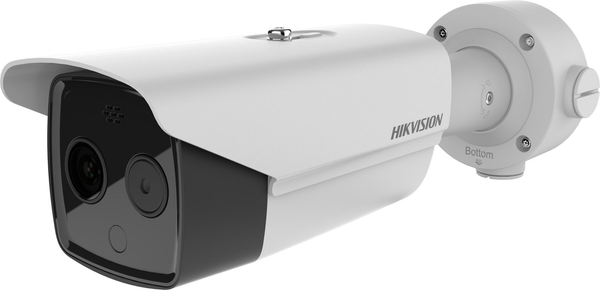

Hikvision DS-2TD2636B-15/P temperature screening thermal imaging bispectral bullet camera, 4MP, 6MM, accuracy +/- 0.5C, high sensitivity cooling module, with 384 x 288 resolution

Bulwark Technology

Hikvision DS-2TD2636B-15/P temperature screening thermal imaging bispectral bullet camera, 4MP, 6MM, accuracy +/- 0.5C, high sensitivity cooling module, with 384 x 288 resolution

Hikvision DS-2TD2636B Thermographic Bullet Body Temperature Measurement Camera is able to measure object's temperature at a high accuracy in real time. It is capable to discover and track people with higher body temperature among the crowded public area, it can be widely used in places such as customs, airport, school and hospital for inspection and quarantine

Also, the Fever Screening Network Bullet Camera unique features enable fast and reliable body temperature readings even in crowded places.

Equipped with built-in GPU which supports intelligent behavior analysis algorithm, it can realize high-precision VCA detection and real-time alarm.

  • 384 × 288 high resolution in thermal channel, high sensitivity sensor
  • Temperature range: 30°C to 45°C; temperature accuracy: ±0.5 °C
  • Reliable temperature exception alarm function
  • 4MP resolution in optical channel
  • 3D DNR, image detail enhancement
  • Temperature measurement accuracy can be adjusted to ± 0.3 ° C (using Black Body calibration device)
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution 384 × 288
Pixel Interval 17μm
Response Waveband 8 μm to 14 μm
NETD (Noise Equivalent Temperature Difference) ≤ 40 mk (@25 °C,F# = 1.0)
Lens (Focal Length) 15 mm
IFOV 1.13 mrad
Field of View 24.5° × 18.5° (H × V)
Min. Focusing Distance 2.5 m
Aperture F 1.0
Max. Image Resolution 2688 × 1520
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
Shutter Speed 1 s to 1/100,000 s
Lens (Focal Length) 6 mm Field of View 51.7° × 28° (H × V)
WDR 120 dB
Day & Night IR cut filter with auto switch
Bi-spectrum Image Fusion Display the details of optical channel on thermal channel
Picture in Picture Display partial image of thermal channel on the full screen of optical channel
Temperature Measurement 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperature Range 30 °C to + 45 °C
± 0.5 °C (For accurate measurement, must be used under 10 °C to 35 °C at indoor and windless environment only)
IR Distance Up to 50 m
IR Intensity and Angle Automatically adjusted
Main Stream Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
Sub-stream Optical: 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144) 60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120) Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240)
Video Compression H.265/H.264/MJPEG
Audio Compression G.711u/G.711a/G.722.1/MP2L2/G.726/PCM
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View Up to 20
User/Host Level Up to 32 users, 3 levels: Administrator, Operator, User
Security Measures User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Alarm Input 2-ch inputs (0-5 VDC)
Alarm Output 2-ch relay outputs, alarm response actions configurable
Alarm Action SD recording/relay output/smart capture/FTP upload/email linkage
Audio Input 1, 3.5 mm Mic in/Line in interface. Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output Linear level, impedance: 600 Ω
Reset 1, Reset Button
Communication Interface 1, RJ45 10M/100M self-adaptive Ethernet interface. 1, RS-485 interface
SD Memory Card Built-in micro SD card slot, support Micro SD/SDHC/SDXC card (up to 256 GB) Supports manual/alarm recording
Analog Video Output 1.0 V [p-p]/75 Ω, BNC, PAL/NTSC
Application Programming Open-ended API, support ISAPI, HIKVISION SDK and third-party management platform, ONVIF (Profile S, Profile G, Profile T)
Client iVMS-4200, Hik-Connect
Web Browser IE 8-11, Chrome 41-44, Firefox 30-51
Menu language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean,
Power 24 VAC± 25%, 12 VDC± 25%, two-core terminal block PoE (802.3af, class 3)
Power Consumption 18 VAC to 30 VAC: 0.38 A to 0.22 A, max. 9 W 9 VDC to 15 VDC: 0.63 A to 1.06 A, max. 9 W PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, max. 9.5 W
Working Temperature/Humidity Temperature: -40 °C to 60 °C Humidity: 95% or less
Protection Level IP66 Standard TVS 6000V lightning protection, surge protection, voltage transient protection
Dimensions 376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
Weight Approx. 1.82 kg (4.01 lb)
