Quick Overview

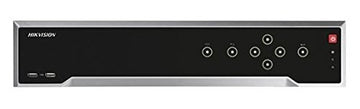

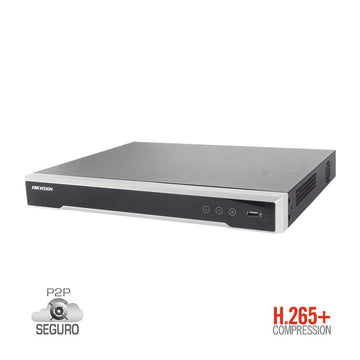

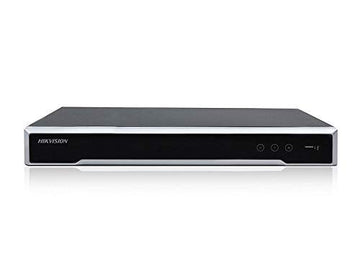

The Hikvision DS-7732NI-K4-16P is a 32 channel network video recorder with a wide array of features, including 16 PoE network interfaces, support for up to 4k (8MP) resolution recording and playback, H.264/H.264+/H.265/H.265+ codecs, and a dual OS design for reliability and failover redundancy.
This brand new NVR is designed to be cost-efficient, whilst still containing all of the benefits and features that are expected from Hikvision's latest generation of fantastic IP camera systems. It's perfect for those small security systems found in homes and shops.
The K Series NVRs also support Hikvision's Automatic Number Plate Recognition solutions and two way audio.
This NVR will accept any capacity hard drive (HDD) currently available. Any maximum capacity stated on the manufacturer’s documents is simply based upon the maximum HDD size that was available at the time of release/publication.
Key Features
- 32 IP Camera Ports, 16 PoE IP Camera Ports
- Support for up to 8MP recording and playback
- Support for 4k video output
- H.264/H.264+/H.265/H.265+ video codecs
- 4 SATA interfaces to connect 4 x 10TB hard drives
- Support for VCA detection alarm
- Compatible with third-party IP cameras
- Supports Hikvision's ANPR solutions
Additional Information
|
Weight |
5000.0000 |
|
Number of Channels |
32 |
|
Synchronous Playback |
16-ch |
|
Number of PoE Ports |
16 |
|
Incoming Bandwidth |
256 Mbps |
|
Outgoing Bandwidth |
160 Mbps |
|
Number of Bays |
4 |
|
Audio Input |
1-ch |
|
Audio Ouput |
1-ch |
|
Alarm I/O |
16/4 |
|
Front USB |
2 x USB 2.0 |
|
Rear USB |
1 x USB 3.0 |
|
RS232 |
Yes |
|
RS485 |
Yes |
|
ANR (Automatic Network Recover) |
Yes |
|
HDD Capacity Supplied |
0GB (Hard Disk Drives sold seperately to demand) |
|
Maximum Memory Capacity |
48TB |
|
Chassis |
1.5U |
|
Dimensions |
445 x 390 x 70mm |
|
Warranty |
3 Years |
|
Launch Date |
August 2016 |
