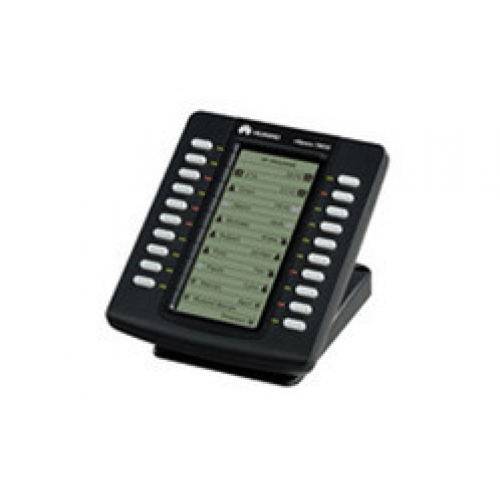

IP Phone expansion module-eSpace 7803X

Bulwark Technology

Model: IP1T7803CH01


As an extension board developed for IP phones eSpace 7830, eSpace 7850 and eSpace 7870, Huawei eSpace 7803X provides numerous functions, such as speed dialing and PBX services. An eSpace 7803X provides up to 38 programmable keys and displays related icons on the LCD.
ESpace 7803X enriches IP phone users' experience and improves efficiency. It is an ideal choice for managers, secretaries, and reception personnel in enterprises with large call traffic.


Ports Two RJ12 (6P6C) ports
LCD Resolution: 160 x 320 pixels and 16 gray scale levels
Languages: Simplified Chinese, Traditional Chinese, English, French, German, Italian, Polish, Russian, Portuguese, Spanish, and Turkish
Programmable keys 38
Function pages 2
Cascade number of extension board 2 (76 programmable keys at most)
Features Designated pickup, group pickup, call park, conference, call hold, call transfer, call forward, voice mailbox, DND
Redial, callback, speed dialing, XML browser, , group listening, line sharing
Electrical features Power supply From the IP phone
Input: 100 -240V AC, 50/60Hz
Output: 5V DC, 1.2A
Power consumption 1W
Relative storage humidity 10% – 90%, no condensing
Physical features Dimensions (H x W x D) 100mm×145mm×182mm
Weight 0.29kg
Installation mode Placed on a desk
