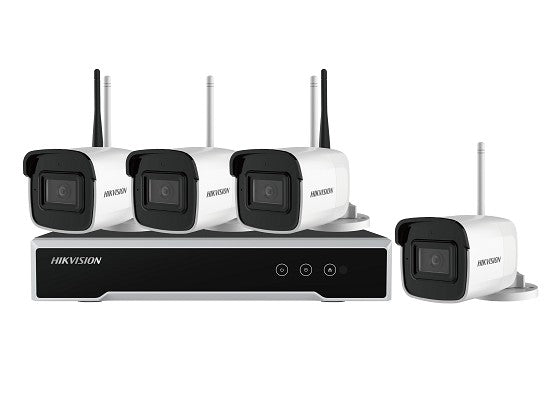

Wifi Camera+Wifi NVR Specification:
- 4*4MP Wi-Fi Cameras with IP66 Protection
- 4-Channel Wi-Fi NVR with Two External Antennas
- Easy to Install, User-Friendly Operation
- Superior Wi-Fi Performance, Automatic Wireless Connection
- Hik-Connect for Easy Network Management
| Video/Audio Input | ||
|---|---|---|
| IP video input: | 4-ch | |
| Network | ||
|---|---|---|
| Incoming bandwidth: | 50Mbps | |
| Outgoing bandwidth: | 40Mbps | |
| Video/Audio Output | ||
|---|---|---|
| HDMI/VGA output: | 1-ch, resolution: 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz |
|
| Decoding | ||
|---|---|---|
| Decoding format: | H.265+/H.265/ H.264+/H.264 | |
| Capability: | 1-ch @ 4 MP / 2-ch @ 1080p | |
| Hard Disk | ||
|---|---|---|
| Interface Type: | 1 SATA interface | |
| SATA: | 1 SATA interface for 1 HDD | |
| Capacity: | Up to 6TB capacity for each HDD | |
| External Interface | ||
|---|---|---|
| Network Interface: | 1 RJ-45 10 / 100 Mbps selfadaptive Ethernet interface |
|
| USB Interface: | 2, USB2.0 | |
| General | ||
|---|---|---|
| Power Supply: | 12 VDC | |
| Working Temperature: | -10 oC ~ +55 oC (+14 oF~ + 131 oF) | |
| Working Humidity: | 10 % ~ 90 % | |
| Dimensions: | 260 × 246 × 48 mm (10.2" × 9.7" × 1.9") | |
| Weight(without HDD): | ≤ 1 kg (2.2 lb) | |
