TE40 Videoconferencing Endpoint (1080P30)

Bulwark Technology

Model: TE40-1080P30

TE40

HUAWEI TE40 HD Endpoint

  • Video resolution:720p 30fps,1080p 30fps (Optional),1080p 60fps (Optional)
  • Dual stream:Dual 1080p 60 fps (Optional); Dual 1080p 30 fps
  • (Optional); Dual 720p 30 fps
  • Video interface:3 in 3 out

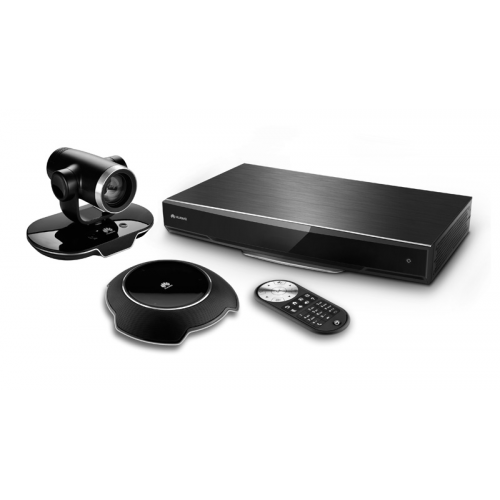

Unit delivered complete with HD Codec, Remote control, Cables, and power supply;
Optional: HD Camera and Omni-array Microphone
Standards & Protocols Standards and Protocols ITU-T H.323, IETF SIP
Video Standards & Protocols H.261, H.263, H.263+, H.264 BP, H.264 HP, H.264 SVC
Audio Standards & Protocols G.711, G.722, G.722.1*, G.722.1C*, G.728, G.719, G.729A, AAC-LD, HWA-LD
Dual Stream ITU-T H.239, BFCP
Other Standards H.221, H.225, H.230, H.231, H.233, H.234, H.235, H.241, H.242, H.243, H.245, H.281, H.283, H.350, H.460, T.140
Network Standards & Protocols TCP/IP, FTP, FTPS, DHCP, SNMP, Telnet, SSH, HTTP, HTTPS with SSL/TLS, PPPoE, RTP, RTCP, SNTP, ARP
Content Video Resolution Input: VGA (640 x 480) @ 60/72/75/85 fps, SVGA (800 x 600) 56/60/72/75/85 @ fps, XGA (1024 x 768) @ 60/70/75/85 fps, 1152 x 864 @ 60/75/85 fps, 1280 x 600 @ 60 fps, WXGA (1280 x 768) @ 60/75/85 fps, WXGA (1280 x 800) @ 60/75/85 fps, 1280 x 960 @ 60/75/85 fps, SXGA (1280 x 1024) @ 60/75/85 fps, 1360 x 768 @ 60 fps, 1366 x 768 @ 60 fps, 1440 x 900 @ 60 fps, XGA+ (1400 x 1050) @ 60 fps, 720p @ 60/75/85 fps, 1080p @ 60 fps, 1600 x 900 @ 60 fps, 1600 x 1200 @ 60 fps, 1680 x 1050 @ 60 fps, 1920 x 1200 @ 60 fps
Coding/Decoding resolution: 800 x 600, 1024 x 768, 1280 x 1024, 1280 x 720, 1920 x 1080, 1600 x 1200, 1920 x 1200
Output: 800 x 600, 1024 x 768, 1280 x 1024, 1280 x 720, 1920 x 1080, 1600 x 1200, 1920 x 1200
Other Video Features Intelligent Face Detection
Picture in Picture,
Picture outside Picture
Video Motion Enhancement (VME)
Video Intensifier
View Processing
Audio Specifications and Features Audio Features Dual-channel AAC-LD Stereo
HWA-LD Stereo: Huawei Audio Broadband Low Delay Stereo
Acoustic Echo Cancellation (AEC)
Acoustic Noise Suppression (ANS)
Automatic Gain Control (AGC)
Voice Clear, Audio Enhancer
Lip synchronization
Security and Stability Network Dual-stack IPv6 and IPv4
IP Precedence, Diffserv
Uniform Resource Identifier (SIP and H.323 support up to 40 characters) dialing
Super Error Concealment (SEC), Intelligent Rate Control (IRC)
Automatic Repeat reQuest (ARQ), Forward Error Correction (FEC), PLC
Security H.235 signaling and media stream encryption
AES media stream encryption, dual-stream encryption
Administrator password, SSH/HTTPS
TLS and SRTP for SIP signaling and media stream encryption
Conference access password, conference control password
Firewall Traversal H.460.18, H.460.19 firewall traversal, Static NAT, SNP
Application Features Languages Simplified Chinese, Traditional Chinese, English, Japanese, Russian , French , Spanish, Portuguese, German, Finnish, Polish, Hungarian, Italian, Norwegian, Arabic, Swedish, Romanian, Czech, Turkish, Greek, Thai, Dutch, Malay, Indonesian
Special Features Voice Dialing in English and Chinese
USB auto data configuration
VGA bypass
Wireless Wi-Fi access
Air content sharing
Connect to two Omni-array Microphones (VPM220)
Wireless MIC VPM220W access
Integration with Microsoft Lync2010TM and OCS2007R2
Hybrid with IMS network
Lock Site/Conference
SiteCall (HD dual-stream)
Web-based conference management
Web-based image monitoring and HD picture snapshot
16:9 and 4:3 mixed display
Picture-in-picture: 1/16 picture size, optional position
Split output: Bi-screen and tri-screen display
LDAP/Network address book
API for integration
Digital Caption Caption banner, body text and information bar
Rolling display mode of the speech draft
Modifiable front background color, caption size and transparency
64 optional colors
Editable caption and auto zone adjustment
Caption rolling mode setting
Site name display and position shift
Text input through remote control
External character generator
Powerful caption SMS function
Maintenance Management Maintenance Methods Remote control: 3D Effects & GUI Animation
Command line mode: Telnet/SSH
Endpoints Network Management: SNMP
Embedded Web server, GUI interface
Wireless touch panel (Optional)
Maintenance Functions Endpoint IP and number are displayed on the front panel
Auto sleep, wake-up by remote control or remote module
Event log record, query, and display, and export query results
IP network test, default settings restoration
Local and remote loopback
Test signals: Providing sound test and standard test stripes
Physical Characteristics Environmental Specification Operating Temperature: 0° C to 40° C
Operating Humidity: 10% to 80%
Non-Operating Temperature: -40º C to -85º C
Non-Operating Humidity (Non-condensing): 0% to 95%
Peripheral noise: < 46 dBA SPL
Lowest luminance: 7 lux
Recommended luminance: > 300 lux
Approval and Compliance CE, RoHS, WEEE, REACH, UL, CCC, FCC, VCCI, C-Tick
