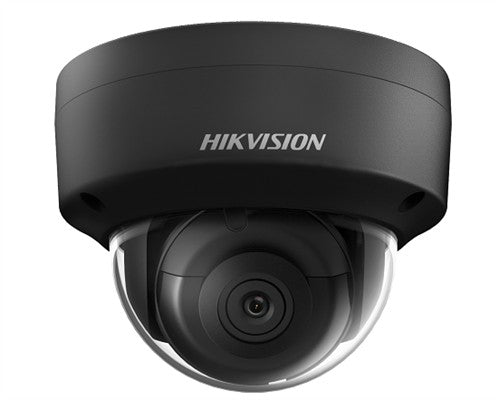

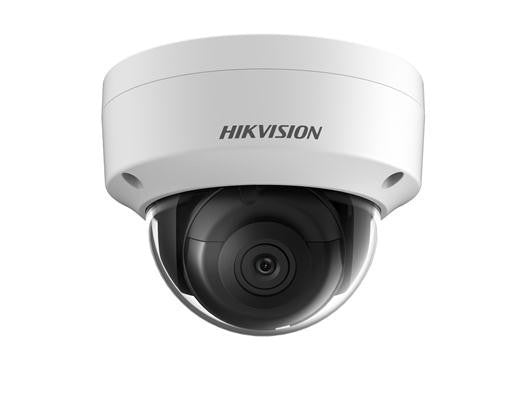

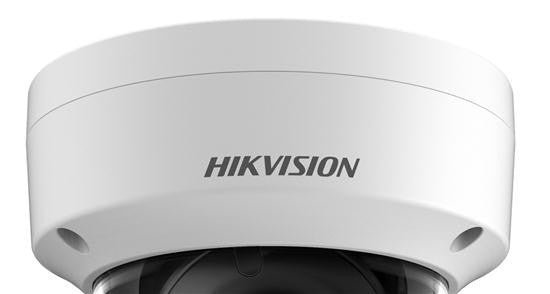

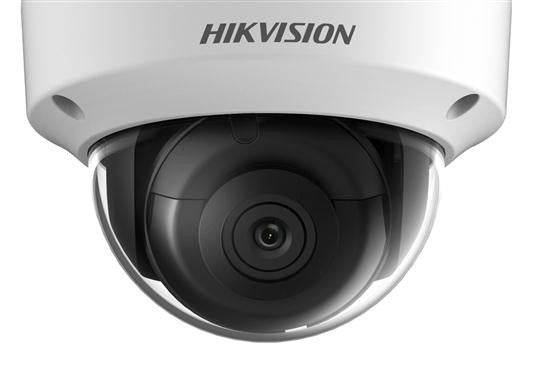

DS-2CD2185FWD-I(S) 8 MP(4K) IR Fixed Dome Network Camera

Hikvision

8 MP

• Up to 8 megapixel high resolution

 • Max. 3840 × 2160@20fps

 • 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed lens, optional

 • H.265, H.265+, H.264+, H.264

 •120dB Wide Dynamic Range

 • 3D Digital Noise Reduction



Camera
Image Sensor: 1/2.5" Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.01 lux @(F1.2, AGC ON), 0.028 Lux @(F2.0, AGC ON), 0 lux with IR
Shutter time: 1/3 s to 1/100,000 s
Slow shutter: Support
Lens: 2.8 mm, horizontal field of view: 102°
4 mm, horizontal field of view: 79°
6 mm, horizontal field of view: 50°
8 mm, horizontal field of view: 40°
12 mm, horizontal field of view: 23°
Lens Mount: M12
Adjustment Range: Pan: 0° to 355° , tilt: 0° to 75°, rotate: 0° to 355°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Focus: Fixed
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate: 32Kbps~16Mbps
Audio Compression: -S: G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Triple Streams: Yes
Max. Image Resolution: 3840 × 2160
Frame Rate: 50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3840 × 2160), 30fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream: 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement: BLC/3D DNR/ROI/HLC
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
ROI: Support 1 fixed region for main stream and sub stream separately
Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
Network
Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G), ISAPI
Interface
Audio: with -S model:1 audio input (line in), 1 audio output interface, terminal block
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
Alarm: with -S model:1 alarm input, 1 alarm output (max. 12 VDC, 30 mA), terminal block
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes
Audio
Environment Noise Filtering: Support(-S)
Audio I/O: support
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Behavior Analysis: Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections: Scene change detection
Recognition: Face Detection
General
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: 12 VDC ± 25%, 6.2 W
PoE(802.3af, 36 V to 57 V,class 3), 9 W
Impact Protection: IK10
Weather Proof: IP67
IR Range: Up to 30m
Dimensions: Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″)
Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″)
Weight: 500 g (1.1 lb.)



 • DC12V & PoE (802.3af)



 • IR range: 30m



 • Support on-board storage, up to 128 GB



 • IP67, IK10
