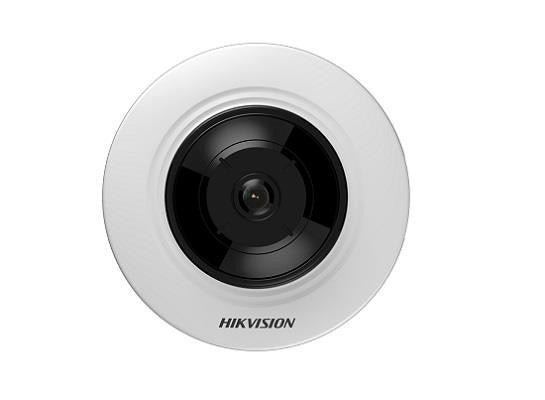

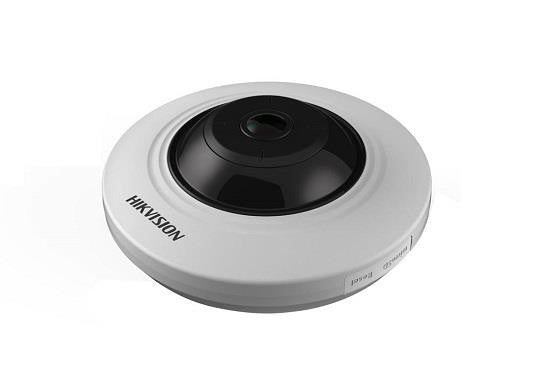

5 MP
• Up to 5 megapixel high resolution
• 2560 × 1920 @30fps
• H.265, H.265+, H.264+, H.264
• Support 14 display modes
• FOV: horizontal FOV 180°, vertical FOV 180°
• Dual video streams
• DC12V & PoE (802.3af)
• Digital Noise Reduction
• Support on-board storage, up to 128 GB
• Up to 8m IR range
• -S: Audio/Alarm IO
Camera | ||
---|---|---|
Image Sensor: | 1/2.5" Progressive Scan CMOS | |
Signal System: | PAL/NTSC | |
Min. Illumination: | Color: 0.01Lux @ (F1.2, AGC ON), 0.034Lux @ (F2.2, AGC ON), 0 Lux with IR on | |
Shutter time: | 1/3 s to 1/100,000 s | |
Slow shutter: | Support | |
Lens: | 1.05 mm @ F2.2, horizontal field of view: 180°, vertical field of view: 180° | |
Lens Mount: | M12 | |
Day& Night: | IR cut filter with auto switch | |
Wide Dynamic Range: | 120 dB | |
Digital noise reduction: | 3D DNR |
Compression Standard | ||
---|---|---|
Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG | |
H.264 code profile: | Main Profile/High Profile | |
Video bit rate: | 32Kbps~16Mbps | |
Audio Compression: | -S: G.711/G.722.1/G.726/MP2L2/PCM | |
Audio bit rate: | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) | |
Dual Stream: | Yes |
Image | ||
---|---|---|
Max. Image Resolution: | 2560×1920 | |
Frame Rate: | 50Hz: 25fps (2560 × 1920, 2048 × 1536, 1280 × 960) 60Hz: 30fps (2560 × 1920, 2048 × 1536, 1280 × 960) |
|
Sub Stream: | 50Hz: 25fps (352× 288, 704 × 576) 60Hz: 30fps (352 × 240, 704 × 576) |
|
Image Enhancement: | WDR/3D DNR/Backlight Compensation/Defog | |
Image Settings: | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser | |
Distortion Correction: | Support | |
BLC: | Support | |
ROI: | Support 1 fixed region for each stream | |
Day/Night Switch: | Auto/Scheduled |
Network | ||
---|---|---|
Network Storage: | Micro SD/SDHC/SDXC card with ANR (up to 128G), NAS (Support NFS, SMB/CIFS) | |
Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 | |
General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
|
System Compatibility: | ONVIF (Profile S, Profile G), ISAPI |
Interface | ||
---|---|---|
Audio: | With –S model: 1 input (line in), 1 output | |
Communication Interface: | 1 RJ45 10M / 100M Ethernet interface | |
Alarm: | with -S model:1 alarm input, 1 alarm output (DC24V, 1A or AC110V, 500mA, max.) | |
On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
Smart Feature-set | ||
---|---|---|
Line Crossing Detection: | Cross a pre-defined virtual line | |
Intrusion Detection: | Enter and loiter in a pre-defined virtual region |
General | ||
---|---|---|
Operating Conditions: | -10 °C to +50 °C (-14 °F to +122 °F), Humidity 95% or less (non-condensing) | |
Power Consumption: | 12 VDC, 0.5 A, max. 6 W PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W |
|
IR Range: | Up to 8m | |
Dimensions: | Φ 119.9 × 41.2 mm (Φ 4.72″ × 1.62″) | |
Weight: | 600 g (1.32 lbs.) |
