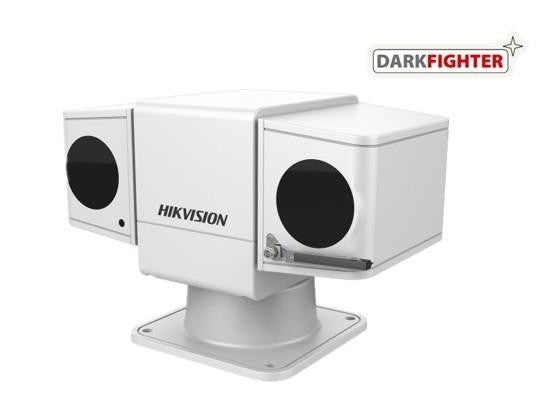

DS-2DY5223IW-AE 2MP 23X Ultra-low illumination IR Positioning System Lite

Hikvision

  • 2MP, 1920 x 1080

  • 23X optical zoom, 16X digital zoom

  • Ultra-low illumination (0.002Lux/F1.5(color),

  • 0.0002Lux/F1.5(black), 0 Lux with IR)

  • Low bit rate, true WDR, Defog, Smart IR

  • 3D intelligent positioning

  • Power-off memory, proportional zoom

  • Analog/Network dual output

  • Support Wiper

  • Up to 150m IR distance

  • Support Hi-PoE

Camera
Effective Pixels: 1920(H)x1080(V)
Signal System: PAL/NTSC
Minimum Illumination: Color: 0.002Lux @ (F1.5, AGC ON)
B/W: 0.0002Lux @(F1.5, AGC ON)
White Balance: Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC: Auto/Manual
BLC: ON/OFF
HLC: Support
Smart defog: Support
WDR: 120dB
Shutter Time: 1/1-1/10,000s
Day& Night: ICR
Digital Zoom: 16X
Auto Focus: Auto / Semi-automatic / Manual
Lens
Focal Length: 5.9-135.7mm, 23x
Field of View: 59.8-3.0 degree (Wide-Tele)
Minimum Working Distance: 10-1500mm(Wide-Tele)
Aperture Range: F1.5~F3.4
Pan & Tilt
Pan Range: 360°endless
Pan Speed: 0.1° -200° /s
Tilt Range: +90°~-90
Tilt Speed: 0.1° -50° /s
Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: 300
Patrol: 8 patrols, up to 32 presets per patrol
Pattern: 4 patterns, with the recording time not less than 10 minutes per pattern
Power-off Memory: Support
Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display: ON/OFF
Wiper: Support
Infrared
IR Distance: 150m
IR irradiation angle: Adjustable by zoom
Alarm
Alarm Input: 7 Inputs
Alarm Output: 2
Input & Output
Monitor Output: 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC
Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: 1920×1080
Main Stream: 50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720)
60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)
Sub Stream: 50Hz: 25fps(704×576), 25fps (352×288), 25fps (176×144)
60Hz: 30fps(704×480), 30fps (352×240), 30fps (176×120)
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
ROI encoding: Support 12 areas with adjustable levels
Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View: Up to 20 channels
Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
User/Host: Up to 32 users, 3 levels: Administrator, Operator and User
Security Measures: User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering
Client GUI
Camera Control: Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Client: Support iVMS-4200
Web Browser: IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language
General
RS-485 Protocols: HIKVISION, Pelco-P, Pelco-D, self-adaptive
Language: English
Power Supply: 24 VAC & Hi-PoE
Power Consumption: Max.60W
Working Temperature/Humidity: -40°C ~ 65°C (-40°F ~ 149°F)
humidity 95% or less
Protection Level: IP66, IK10, TVS 6,000V lightning protection, surge protection and voltage transient protection
Weight (approx.): 7.8kg (approx.)
