- 1/1.9" progressive scan CMOS
- Up to 1920 × 1080 resolution
- Min. illumination:
Color: 0.002 Lux @(F1.5, AGC ON)
B/W: 0.0002 Lux @(F1.5, AGC ON)
- 36× optical zoom, 16×digital zoom
- 120dB WDR, 3D DNR, HLC, BLC, Smart IR
- 24 VAC

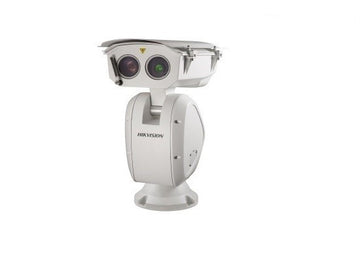

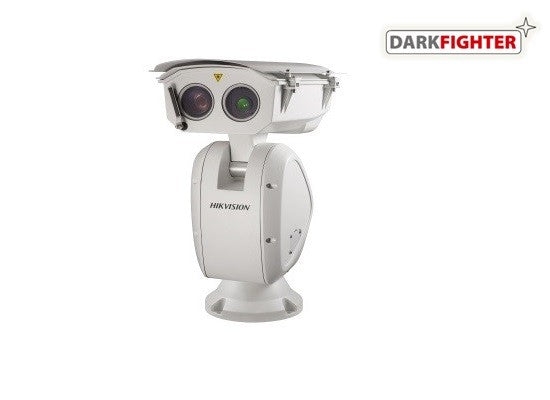

- Support up to 800 m laser distance
- Support H.265+/H.265 video compression
| Camera | ||
|---|---|---|
| Image Sensor: | 1/1.9" progressive scan CMOS | |
| Effective Pixels: | 1920(H)x1080(V) | |
| Minimum Illumination: | Color: 0.002 Lux @(F1.5, AGC ON) B/W: 0.0002 Lux @(F1.5, AGC ON) 0 Lux with IR |
|
| White Balance: | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp | |
| AGC: | Auto/Manual | |
| BLC: | ON/OFF | |
| HLC: | Support | |
| Smart defog: | Support | |
| WDR: | 120dB | |
| Shutter Time: | 1/1 s to 1/30,000 s | |
| Day& Night: | ICR | |
| Digital Zoom: | 16× | |
| Privacy Mask: | 24 programmable privacy masks | |
| Auto Focus: | Auto / Semi-automatic / Manual | |
| Lens | ||
|---|---|---|
| Focal Length: | 5.6 mm to 207 mm, 36× optical zoom | |
| Zoom Speed: | Approx. 4.4 s (optical lens, wide-tele) | |
| Field of View: | Horizontal field of view: 59.8° to 2.0° (wide-tele) Vertical field of view: 33.6° to 1.1° (wide-tele) Diagonal field of view: 68.6° to 2.3° (wide-tele) |
|
| Minimum Working Distance: | 10 mm to 1500 mm (wide-tele) | |
| Aperture Range: | F1.5 to F4.5 | |
| Pan & Tilt | ||
|---|---|---|
| Pan Speed: | Configurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s | |
| Tilt Range: | -90° - 40° | |
| Tilt Speed: | Configurable, from 0.1°/s to 40°/s, Preset Speed: 100°/s | |
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
| Number of Preset: | 300 | |
| Patrol: | 8 patrols, up to 32 presets for each patrol | |
| Pattern: | 4 pattern scans, record time over 10 minutes for each scan | |
| Power-off Memory: | Support | |
| Park Action: | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan | |
| PTZ Position Display: | ON/OFF | |
| Wiper: | Yes. Rain-sensing auto wiper | |
| Infrared | ||
|---|---|---|
| Laser Distance: | 800 m | |
| Alarm | ||
|---|---|---|
| Alarm Input: | 7 Inputs | |
| Alarm Output: | 2 | |
| Input & Output | ||
|---|---|---|
| CVBS Output: | 1.0V[p-p]/75Ω, NTSC (or PAL) composite, BNC | |
| Audio Input: | 1-ch audio input | |
| Audio Output: | 1-ch audio output | |
| Network | ||
|---|---|---|
| Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector | |
| Max.Image Resolution: | 1920×1080 | |
| Main Stream: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 50fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720), 60fps (1920 × 1080, 1280 × 960, 1280 × 720) |
|
| Sub Stream: | 50Hz:25fps(704×576), 25fps(640×576), 25fps(320×288) 60Hz:30fps(704×480), 30fps(640×480), 30fps(320×240) |
|
| Third Stream: | 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) |
|
| Video Compression: | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
|
| Audio Compression: | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM | |
| Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour | |
| Three-Stream: | Support | |
| Storage: | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB | |
| User/Host: | Up to 32 users, 3 levels: Administrator, Operator and User | |
| Security Measures: | User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering | |
| General | ||
|---|---|---|
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive | |
| Power Supply: | 24V AC | |
| Power Consumption: | Max.: 110 W | |
| Working Temperature/Humidity: | Temperature: Outdoor: -40°C to 70°C (-40°F to 158°F) Humidity: ≤ 95% |
|
| Protection Level: | IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection | |
| Material: | Aluminum alloy ADC12 | |
| Dimensions: | 251 mm × 360 mm × 508 mm (9.88" × 14.17" × 20") | |
| Weight (approx.): | Approx. 20 Kg (44.09 lb) | |
