• Third-party network cameras supported
• Up to 12 Megapixels resolution recording
• Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160)
resolution
• 16/32-ch network cameras can be connected with
160M/256M incoming bandwidth
• Up to 4 SATA interfaces
• Plug & Play with up to 16 independent PoE network
interfaces
• Support dual-os to ensure high reliablility of system
running
•Support various VCA detection alarm and VCA search
•Support H.265/H.264/MPEG4 video formats
Video/Audio Input |
Two-way audio input: |
|
1-ch, RCA (2.0 Vp-p, 1kΩ) |
IP video input: |
|
32-ch |
Network |
Remote connection: |
|
128 |
Incoming bandwidth: |
|
256Mbps |
Outgoing bandwidth: |
|
256Mbps |
Video/Audio Output |
HDMI Output: |
|
1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
Recording Resolution: |
|
12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Audio Output: |
|
1-ch, RCA (2.0Vp-p, 1KΩ) |
Synchronous Playback: |
|
16-ch |
VGA Output: |
|
1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
Decoding |
Capability: |
|
4-ch@8MP,16-ch@1080P |
Live view / Playback: |
|
12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Hard Disk |
SATA: |
|
4 SATA interfaces for 4HDDs |
Capacity: |
|
Up to 6TB capacity for each HDD |

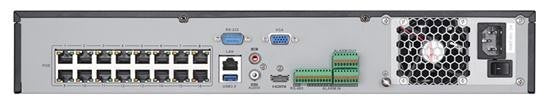

External Interface |
Network Interface: |
|
1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
Serial Interface: |
|
RS-232; RS-485; |
USB Interface: |
|
Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0 |
Alarm In: |
|
16-ch |
Alarm Out: |
|
4-ch |
POE |
Supported Standard: |
|
AF and AT |
Interface: |
|
24 independent 10/100 Mbps PoE Ethernet interfaces |
Max. Power: |
|
200W |
General |
Power Supply: |
|
100 to 240 VAC |
Consumption(without hard disk and POE): |
|
≤20 W |
Working Temperature: |
|
-10 oC ~ +55 oC (+14 oF~ + 131 oF) |
Working Humidity: |
|
10 % ~ 90 % |
Chassis: |
|
19-inch rack-mounted 1.5U chassis |
Dimensions: |
|
445 × 390 × 70 mm (17.5"× 15.3" × 2.8") |
Weight(without HDD): |
|
≤ 5 Kg (11 lb) |
