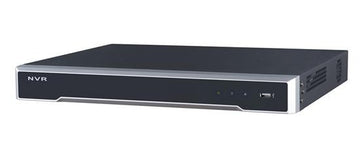

DS-7616NI-K2 Embedded Plug & Play 4K NVR

Hikvision

• Third-party network cameras supported
• Up to 8 Megapixels resolution recording
• Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160)

resolution

• 16/32-ch network cameras can be connected with
160M/256M incoming bandwidth
• Up to 4 SATA interfaces
• Plug & Play with up to 16 independent PoE network
interfaces
• Support dual-os to ensure high reliablility of system

running

•Support various VCA detection alarm and VCA search

•Support H.265/H.264/MPEG4 video formats

Video/Audio Input
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kΩ)
IP video input: 32-ch
Network
Incoming bandwidth: 256Mbps
Outgoing bandwidth: 160Mbps
Video/Audio Output
HDMI Output: 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output: 1-ch, RCA (Linear, 1kΩ)
Synchronous Playback: 16-ch
VGA Output: 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Decoding
Capability: 8-ch@1080P
Live view / Playback: 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Hard Disk
SATA: 4 SATA interfaces for 4HDDs
Capacity: Up to 6TB capacity for each HDD
External Interface
Network Interface: 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
Serial Interface: RS-232; RS-485;
USB Interface: Front panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0
Alarm In: 16-ch
Alarm Out: 4-ch
POE
Supported Standard: AF and AT
Interface: 16 independent 100 Mbps PoE network interfaces
Max. Power: 200W
General
Power Supply: 100 to 240 VAC
Consumption(without hard disk and POE): ≤20 W
Working Temperature: -10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity: 10 % ~ 90 %
Chassis: 19-inch rack-mounted 1.5U chassis
Dimensions: 445 × 390 × 70 mm (17.5"× 15.3" × 2.8")
Weight(without HDD): ≤ 5 kg (11 lb)
