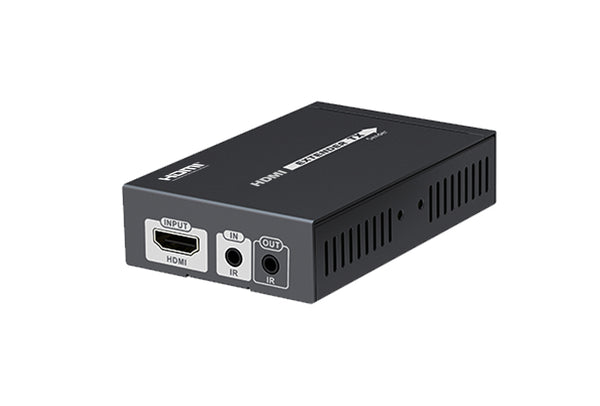

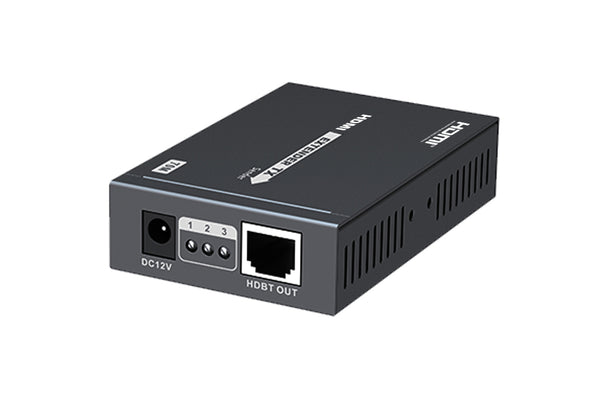

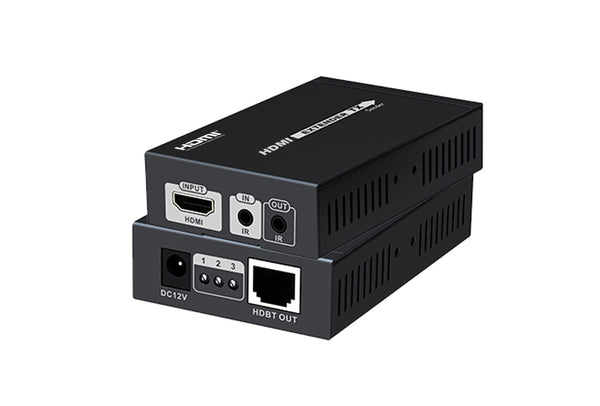

Model：LKV375N
This LKV375N HDbaseT single network cable extender transmits HDMI signal up to 70meters over cat6 fluently and clearly.lt is lossless in signal and suppots 3D,24bits deep color,CEC and HDCP.Support ultra HD 4Kx2K @60Hz.
Features
-
Incorporate HDbaseT extend technology
Transmit uncompressed HDMI signal over CAT5e/6/6a/7 cable
3. Support full HD 1080p@60Hz, 3D, 4Kx2K＠60Hz
4. Support distance up to 230feet (70 meters) with CAT6a/7
5. Support bidirectional IR pass-back function
6. Support HDCP ,CEC, 24 deep color
7. Support uncompressed LPCM audio and compressed DTS-HD, Dolby True HD
Specification
|
Model |
LKV375N |
||
|
HDMI signal |
4Kx2K, compatible with HDCP, support CEC and 24bits deep color |
||
|
Resolution Supported |
480i/480P/576i/576P/720P/1080i/1080P/3D/4Kx2K |
||
|
Audio |
LPCM , DTS-HD, Dolby True HD |
||
|
Network cable |
CAT5E, CAT6, CAT6A, CAT7 |
||
|
Transmission length |
CAT5E |
60m |
UP to 1080p@60Hz 36bpp |
|
35m |
1080p@60Hz 48bpp, 1080p@60Hz 3D, 4Kx2K@30Hz, 4Kx2K@ 60Hz(4:2:0) |
||
|
CAT6 |
70m |
UP to 1080p@60Hz 36bpp |
|
|
40m |
1080p@60Hz 48bpp, 1080p@60Hz 3D, 4Kx2K@30Hz, 4Kx2K@ 60Hz(4:2:0) |
||
|
Infrared back |
Support 20~60kHz wide frequency devices and Bi-directional IR transmission |
||
|
Power supply |
DC12V/1A *2pcs |
||
|
Power consumption |
TX＜3.5W RX＜6W |
||
|
Product dimension |
98.5(L)x66.5(W)x23(H)mm *2pcs |
||
|
Enclosure material |
Metal |
||
|
Weight |
TX:79g RX:107g |
||
|
Color |
Black |
||
