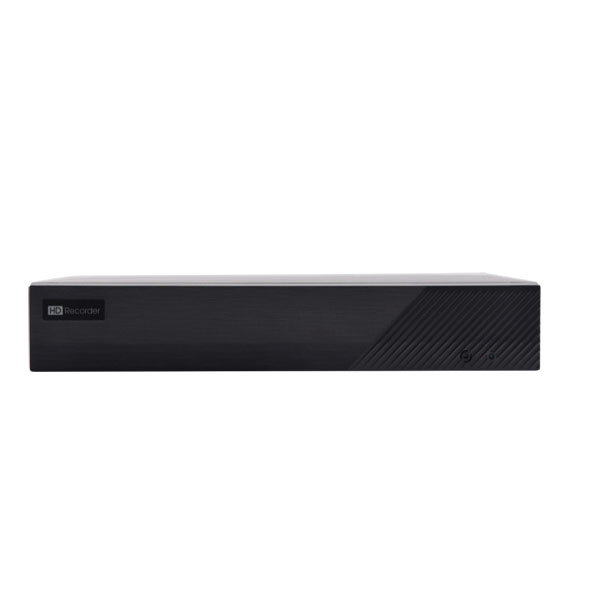

NVR-304-POE 4K POE NVR

Bulwark Technology

Key Features:

Support Ultra 265/H.265/H.264 video formats
4-channel input
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support 1-ch HDMI, 1-ch VGA
HDMI and VGA simultaneous output
Up to 5MP resolution recording
1 SATA HDD up to 10 TB
Support cloud upgrade

Product parameter:

Model

NVR-304-POE

Video/Audio Input

IP Video Input

4-ch

Network

Incoming Bandwidth

40Mbps

Outgoing Bandwidth

40Mbps

Remote Users

128

Protocols

P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

HDMI/VGA Output

HDMI:

1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

VGA:

1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

Recording Resolution

5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Synchronous Playback

4-ch

Corridor Mode Screen

3/4

Decoding

Decoding format

Ultra 265/H.265/H.264

Liveview/Playback

5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

1 x 5MP@30, 2 x 4MP@25, 2 x 3MP@30,4 x 1080p@25, 8 x 960p@25,8 x 720p@30

Hard Disk

SATA

1 SATA interface

Capacity

up to 10TB for each disk

Smart

VCA Detection

Face detection, Intrusion detection, Cross line detection, Audio detection

External Interface

Network Interface

1 RJ45 10M/100M self-adaptive Ethernet Interface

USB Interface

Rear panel: 2 x USB2.0

Supported Standard

IEEE 802.3at, IEEE 802.3af

External Interface

Interface

4 independent 100 Mbps PoE network interfaces

Max Power

Max 30W for single port

Max 54W in total (13.5W for each)

Supported Standard

IEEE 802.3at, IEEE 802.3af

General

Power Supply

48V DC

Power Consumption: ≤10 W (without HDD)

Working Environment

-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)

Dimensions (W×D×H)

260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")

Weight (without HDD)

1.5Kg





Package Contents:

Size:260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")
weight:1.5Kg
