Model

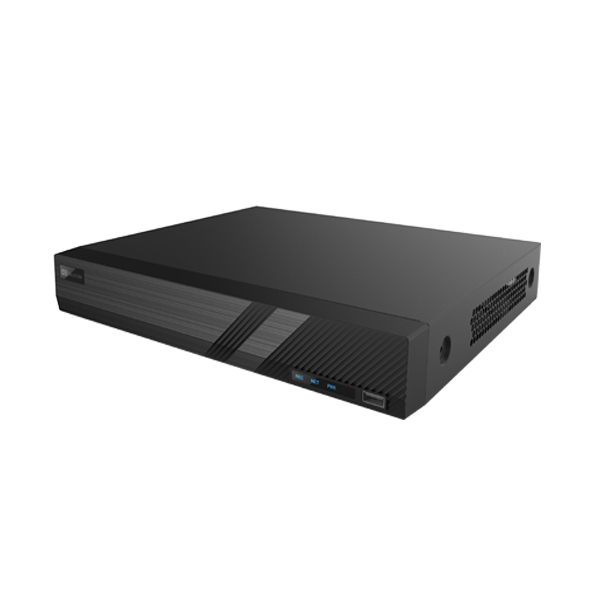

NVR-308-POE

Video/Audio Input

IP Video Input

8-ch

Two-way Audio Input

1-ch, RCA

Network

Incoming Bandwidth

64Mbps

Outgoing Bandwidth

64Mbps

Remote Users

128

Protocols

P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

HDMI/VGA Output

HDMI:

3840x2160/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

VGA:

1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

Recording Resolution

4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Synchronous Playback

8-ch

Corridor Mode Screen

3/4/5/7/9

Decoding

Decoding format

Ultra 265/H.265/H.264

Liveview/Playback

4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080p@30, 16 x 720p@30

Hard Disk

SATA

1 SATA interface

Capacity

up to 10TB for each disk

Smart

VCA Detection

Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking

VCA Search

Face search, Behavior search

Statistical Analysis

People counting

External Interface

Network Interface

1 RJ45 10M/100M self-adaptive Ethernet Interface

USB Interface

Rear panel: 1 x USB2.0,1 x USB3.0

PoE

Interface

8 independent 100 Mbps PoE network interfaces

Max Power

Max 30W for single port

Max 108W in total (13.5W for each)

Supported Standard

IEEE 802.3at, IEEE 802.3af

General

Power Supply

52V DC

Power Consumption: ≤8 W (without HDD)

Working Environment

-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)

Dimensions (W×D×H)

260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")

Weight (without HDD)

1.5Kg
