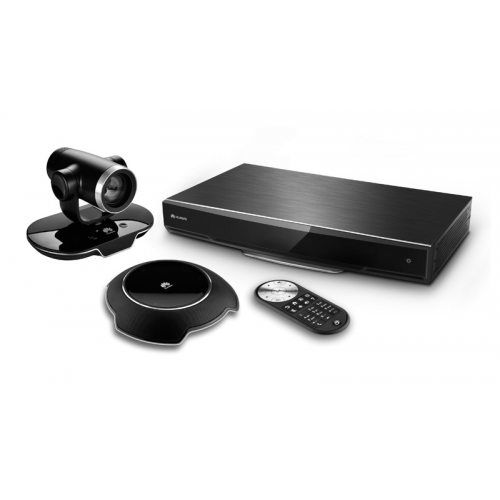

TE40 HD codec 1080P60, VPC600 HD camera(12x), VPM220W wireless microphone array

Bulwark Technology

Model: TE40-1080P60-W-P-02

Huawei TE series brings state-of-the-art HD technology to HD video conferencing endpoints. This new series from Huawei delivers peak performance with dual 1080p 60fps video and AAC-LD audio, with a face-to-face communication experience so lifelike you will think you are in the same room. Multi-view images are easily transmitted to users simultaneously for a complete panoramic presentation. Numerous audio/video interface options and Wi-Fi connection integrate the conference room and simplify deployment, making the TE series the ideal choice for scenarios like administrative conferences and remote education video conferencing.

Features:

Innovative Technologies Provide HD Experience with Low-bandwidth

  • TE Series supports resolutions up to dual-stream 1080p 60fps to provide total HD experiences;
  • With the combination of VME2.0 and H.264 HP, bandwidth consumption is reduced by 50%;
  • Intelligent face detection, frame rate doubling, and video enhancement technologies provide outstanding video communication experiences;
  • TE Series supports AAC-LD, Acoustic Echo Cancellation (AEC) and Acoustic Noise Suppression (ANS) to provide Hi-Fi audio.

Feature-rich Functionalities, Intelligent and Easy-to-use to Satisfy Customers’ Requirements

  • Voice Dialing: TE Series recognizes multiple languages. You can call or join a conference simply by saying the conference or site name.
  • Multi-view: Images from multi-cameras are transmitted in CP to the far-end via one stream which saves bandwidth and enables far-end sites to view live images from different angles.
  • Wi-Fi Access: Built-in Wi-Fi enables TE Series to support wireless network, microphone.
  • Live content: More than one site can share full HD content simultaneously, and any site can view any content as needed.
  • Air content sharing: No VGA cable required, users easily share data as presentations or content over wireless or IP network.
  • USB auto configuration: Data configuration is completed via U-disk, providing plug-and-play which is secure, convenient, and effortless.
  • VGA bypass: Local conference and video conference share one VGA, keeping local data sharing active without the need to plug and unplug VGA cables even after the video conferencing endpoint powers off.

User-Friendly Interface and Remote-Control Design

  • Innovative 3D GUI, convenient to use and maintain.
  • Wizard for first-time installation.
  • LCD display for real-time local site information.

Outstanding Network Adaptability and Security Mechanism

  • Patented Super Error Concealment (SEC) ensures high-quality video experiences even with packet loss at 20%.
  • Supports H.264 SVC, adaptable to different bandwidths, device capabilities, and network requirements.
  • Standard H.460 and proprietary SNP technology guarantee secure firewall traversal.
  • H.235 media stream and signaling encryption for SRTP, TLS, and HTTPS.

Extensive System Integration

  • Inter-operable with standard endpoints and infrastructures.
  • Integration with Microsoft Lync2010™ and OCS2007R2.
  • Seamless integration with IMS.
  • Plentiful third-party APIs for system integration and customization

Model Comparison

TE40 TE50 TE60
positioning Commercial Professional Flagship
Scenarios Middle and small-sized conference rooms Large and middle-sized conference rooms Super-sized conference rooms
People Video Resolution 1080p @ 60 fps from 1Mbps (Optional)
1080p @ 30 fps from 512 Kbps (Optional)
1080i @ 60 fps from 512 Kbps (Optional)
720p @ 50/60 fps from 512 Kbps(Optional)
720p @ 25/30 fps from 384 Kbps
1080p @ 60 fps from 1Mbps (Optional)
1080p @ 30 fps from 512 Kbps
1080i @ 60 fps from 512 Kbps
720p @ 50/60 fps from 512 Kbps
720p @ 25/30 fps from 384 Kbps
1080p @ 60 fps from 1Mbps (Optional)
1080p @ 30 fps from 512 Kbps
1080i @ 60 fps from 512 Kbps
720p @ 50/60 fps from 512 Kbps
720p @ 25/30 fps from 384 Kbps
Dual stream Dual 1080p @ 60 fps (Optional); Dual 1080p @ 30 fps (Optional); Dual 720p @ 30 fps Dual 1080p @ 60 fps (Optional); Dual 1080p @ 30 fps Dual 1080p @ 60 fps (Optional); Dual 1080p @ 30 fps
Video Inputs 1 x HD-VI / DVI
1 x HDMI / DVI
1 x VGA/YPbPr
1 x HD-VI / DVI
1 x HDMI / DVI
1 x VGA/YPbPr
1 x 3G-SDI
1 x CVBS
2 x HD-VI / DVI
2 x DVI-I/HDMI/VGA/YPbPr
1 x HDMI / DVI
1 x 3G-SDI
1 x Display Port
1 x CVBS/S-VIDEO (DVI-I multiplex)
Video Outputs 2 x HDMI / DVI
1 x VGA/YPbPr
2 x HDMI / DVI
1 x VGA/YPbPr
1 x 3G-SDI
1 x CVBS
2 x HDMI / DVI
2 x DVI-I/HDMI/VGA/YPbPr
1 x 3G-SDI
1 x CVBS/S-VIDEO (DVI-I multiplex)
Audio Inputs 1 x XLR
2 x RCA
1 x HDMI
1 x HD-AI (Mic Array/Audio external)
1 x XLR
2 x RCA
1 x 3.5mm
1 x HDMI
1 x HD-AI (Mic Array/Audio external)
2 x XLR
2 x RCA
1 x HDMI
1 x Display Port
1 x HD-AI (Mic Array/Audio external)
Audio Outputs 4 x RCA
2 x HDMI
4 x RCA
2 x HDMI
4 x RCA
2 x HDMI
2 x DVI-I (DVI converted to HDMI)
Other Interfaces IP: 10/100/1000 Base-T, 2 x RJ45;
PSTN(#): 1 x RJ11
Wireless: Built-in Wi-Fi;
2 x RS232 COM;
2×USB 2.0 Host
IP: 10/100/1000 Base-T, 2 x RJ45;
PSTN(#): 1 x RJ11
Wireless: Built-in Wi-Fi;
2 x RS232 COM
2×USB 2.0 Host
4E1 (Optional): G.703, G.704, 4 x RJ45;
PSTN(#): 1 x RJ11
IP: 10/100/1000 Base-T, 2 x RJ45
Wireless: Built-in Wi-Fi ;
2 x RS232 COM
2×USB 2.0 Host
Multi-view 2-view 2-view 3-view
Bandwidth IP: 64kbps~8Mbps IP: 64kbps~8Mbps IP: 64kbps~8Mbps ; 4E1: 64kbps~8Mbps
Dimensions Codec dimensions (L x W x H): 435 mm x 265.5 mm x 72.5 mm
Package dimensions (L x W x H): 545 mm x 355 mm x 220 mm
Net weight: 3.9 kg
Package Weight: 5.8 kg
Codec dimensions (L x W x H): 435 mm x 265.5 mm x 72.5 mm
Package dimensions (L x W x H): 545 mm x 355 mm x 220 mm
Net weight: 4.1 kg
Package Weight: 6.0 kg
Codec dimensions (L x W x H): 435 mm x 265.5 mm x 72.5 mm
Package dimensions (L x W x H): 545 mm x 355 mm x 220 mm
Net weight: 4.6 kg
Package Weight: 6.8 kg
Electrical Working voltage: 100V to 240V AC
Working frequency: 50 Hz to 60 Hz
Power consumption: 60 W
Embedded AC/DC power module
Working voltage: 100V to 240V AC
Working frequency: 50 Hz to 60 Hz
Power consumption: 60 W
Embedded AC/DC power module
Working voltage: 100V to 240V AC
Working frequency: 50 Hz to 60 Hz
Power consumption: 150 W
Embedded AC/DC power module
