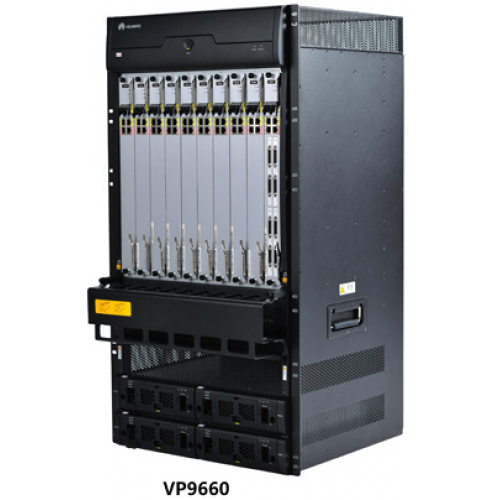

VP9660-8-AC Universal Transcoding

Bulwark Technology

Model: VC6M1CUCA

Introduction


HUAWEI VP9600 series is a cutting-edge MCU with high-capacity, High cost-effectiveness, flexible ports utilization and high scalability. It is the first MCU in the industry to support up to1080p60 universal transcoding.

  • Symmetric 1080p60 universal transcoding and personal continuous presence, delivering an ultimate experience
  • Support up to six-level hot spare, high stability and reliability
  • Support multichannel and multilevel cascading and IMS ready, particularly for large networks
  • Standard open, supports H.320, H.323, SIP, TIP, ISDN and integrated with multiple UC systems

Product Features


High Performance and Universal Transcoding Bring an Ultimate Experience


  • The first MCU in the industry supporting 1080p60 universal transcoding provides an ultimate videoconferencing experience for participants.
  • H.264 High Profile saves bandwidth by 50%.
  • AAC-LD realizes CD-quality audio effect and three-channel brings sound localization.
  • Intelligent transcoding for content sharing across different types of devices.

High Capacity, Standard-Based, Scalable


  • Smooth scalable, high capacity.
  • Support multilevel cascading, multichannel cascading and conference recording.
  • Standard-based and open: Supports H.323, H.320, SIP, TIP and convergence conference of Telepresence, HD/SD endpoints, mobile devices and audio endpoints.
  • Integrated with Huawei eSpace Microsoft Lync2010™/OCS2007R2, IBM Sametime UC and Skype.
  • SOAP-based API for integration with third-party systems.
  • Maximize resource utilization and improves ROI by dynamic resource allocation.

Easy to Deploy and Use


  • Embedded GK, web and role-based management.
  • Multiple modes for firewall traversal, such as H.460, static NAT, video firewall option and SNP™.
  • Multiple methods for conference initiation, such as HUAWEI SiteCall™, Ad hoc, and web-based scheduling.
  • Plenty of conference control functions, including automatic continuous presence, voice activation, chair control, DTMF control, audio/video IVR, H.239 content sharing token, and FECC.

Secure, Reliable and Powerful QoS


  • H.264 SVC and SEC 3.0 ensure smooth videoconferences even if the packet loss is up to 20%.
  • Dynamic jitter buffer up to 1000 ms ensures conference quality.
  • IRC™ provides the best conference experience with low network bandwidth.
  • Ensure conference data security via H.235 (AES256), SRTP/TLS(AES256), HTTPS and SSH.
  • Multi-level hot spare.

Product Specification

Item VP9630 VP9650 VP9660
Capacity Dynamic flexible ports:
Up to 12 HD 1080p60 ports in CP
= 24 HD 1080p30 ports in CP
= 48 HD 720p30 ports in CP
= 96 4CIF ports in CP
VOIP port:
Quantity same as that of 1080p30 ports
Dynamic flexible ports:
Up to 36 HD 1080p60 ports in CP
= 72 HD 1080p30 ports in CP
= 144 HD 720p30 ports in CP
= 288 4CIF ports in CP
VOIP port:
Quantity same as that of 1080p30 ports
ISDN:
Up to 64 PRI or 192 3BRI(384k) ISDN access
Dynamic flexible ports:
Up to 84 HD 1080p60 ports in CP
= 168 HD 1080p30 ports in CP
= 336 HD 720p30 ports in CP
= 672 4CIF ports in CP
VOIP port:
Quantity same as that of 1080p30 ports
ISDN:
Up to 64 PRI or 256 3BRI(384k) ISDN access
Video Standards and Protocols ITU-T H.264, H.264 HP, H.264 SVC, H.263, H.263+, H.263++, H.261
ITU-T H.239, BFCP
People Video Resolution Resolution: QCIF, CIF, 4CIF, 720p, 1080p
Video Frame Rate: 25fps, 30fps, 50fps, 60fps
Content Video Resolution Standard resolution from VGA to 1080p60
Audio Standards and Protocols AAC-LD, HWA-LD, G.722.1*, G.722.1C*, G.711, G.722, G.728, G.729A, G.729AB, G.719, iLBC
Three-channel
Other Supported Standards H.221, H.225, H.235, H.242, H.243, H.245, H.281, H.283, H.460, TIP, FECC, RFC2833, DTMF, SRTP, TLS, T.140, NTP
Network Standards and protocols: ITU-T H.323, H.320 (VP9660&VP9650 support), IETF SIP
Network standards: TCP/IP, FTP/FTPS, RTP, RTCP, HTTP/HTTPS, SNMP, TELNET, SSH, DNS/DDNS
Bandwidth for one port: 64Kbps~8Mbps
Network Interfaces:
GE, 1000 Mb, RJ45
FE, 100 Mb, RJ45
RS232, RJ45
SFP, Gigabit optical fiber interface
PRI E1 or T1: 75/120 ohm, SMB/RJ45
Line Types: IP, ISDN
Management Tools Support SSH
Remote upgrade
Resource statistic
Hardware diagnosis
Support CDR (Call Detail Record)
Data export and import
Support Conference configuration template
Status monitor
IP QoS DiffServ (DSCP),  IP precedence, ARQ
SEC™3.0 (Super Error Concealment )
IRC™ (Adaptability Intelligent Rate Control )
Auto adaptation enabling
Priority settings of QoS
SNP transversal between private and public networks
H.460/Static NAT transversal
Security Conference password
HTTPS ensures the safety for Web accessing
H.235 (AES256) and SRTP/TLS(AES256) encryption
Approval and Compliance CE, WEEE, RoHS, REACH, FCC, UL, VCCI-A, GOST, C-TICK
Operating Environment Operating temperature: 0℃ ~ 45℃
Relative humidity: 5% ~ 90% (Non - Condensing)
Air pressure: 63 ~ 106KPa
Reliability MTBF: >100,000 hours
MTTR: < 0.5 hour
Highlights Embedded web, embedded GK(VP9650&VP9630 support)
Universal transcoding for telepresence
CP on each port
Auto continuous presence
Dynamic flexible ports
48 modes of continuous presence
Ad hoc and audio/video IVR
HUAWEI SiteCall™
Schedule conferences via web (VP9650&VP9630 support) and Outlook
Email notification
URI dialing
Plenty of conference control functions
Chair control
Endpoint control via DTMF
Message overlay
Mute video
Support camera control
Support content lock
Support video source lock
Firewall traversal: H.460, static NAT, HUAWEI SNP, Video firewall option
Integrated with UC: Huawei eSpace, Microsoft Lync2010™/OCS2007R2, and IBM Sametime
Intelligent negotiation: best utilization of endpoint’s ability
Language: English, French, German, Spanish, Russian, Chinese, Japanese
Dimension 86.1mm(H) × 442mm(W) × 450mm(D), 2U 219.5mm (H) × 436mm(W) × 420mm(D), 5U 886.2mm(H) × 436mm(W) × 420mm(D), 20U
Weight  < 20Kg < 40Kg < 100Kg
Power AC input: 100 ~ 240V 50/60HZ AC input: 100 ~ 240V 50/60HZ AC input: 100 ~ 240V 50/60HZ
  DC input: -48 ~ -60V DC input: -48 ~ -60V
Max power consumption: 400W Max power consumption: 1100W Max power consumption: 3000W
Hot spare MCU, power, network interface, chipset MCU, power, media board, network interface, chipset MCU, power, control board, media board, network interface, chipset



Model Recommendation

Item VP9630 VP9650 VP9660
Max capacity 12 HD 1080p60 ports in CP
= 24 HD 1080p30 ports in CP
= 48 HD 720p30 ports in CP
= 96 4CIF ports in CP
36 HD 1080p60 ports in CP
= 72 HD 1080p30 ports in CP
= 144 HD 720p30 ports in CP
= 288 4CIF ports in CP
84 HD 1080p60 ports in CP
= 168 HD 1080p30 ports in CP
= 336 HD 720p30 ports in CP
= 672 4CIF ports in CP
Dimension 86.1mm(H) × 442mm(W) × 450mm(D), 2U 219.5mm (H) × 436mm(W) × 420mm(D), 5U 886.2mm(H) × 436mm(W) × 420mm(D), 20U
Weight < 20Kg < 40Kg < 100Kg
Max power consumption 400W 1100W 3000W
Hot spare MCU, power, network interface, chipset MCU, power, media board, network interface, chipset MCU, power, control board, media board, network interface, chipset
Application description Embedded GK&Web, highly cost-effective, low power consumption, designed for videoconferencing system of small-and medium-sized enterprises, and multipoint videoconferencing platform in large and medium-sized branches of large organizations covering government, finance and electric power areas. Large capacity, embedded GK&Web, highly cost-effective,  designed for videoconferencing system of small-and medium-sized enterprises, and multipoint videoconferencing platform in large and medium-sized branches of large organizations covering government, finance and electric power areas. The universal transcoding MCU with the strongest capability and highest reliability in the industry is designed for multipoint videoconferencing platform in headquarters of large organizations covering government, finance and electric power areas, and also can be used in large-scale multipoint videoconferencing platform of carriers or hosting operators.
